Functions of Git Version Control

Go to How to Start Git Version Control Function page.

Log
Branch
Merge
Rebase
Commit
Discard Changes
Fetch/Pull
Push
Repository Settings/Delete

■Log

You can view historical information on commits.
Select a repository or file or folder to run..
Displays graph, commit ID, summary (shown as a badge), first part of comment, name, date and time..
You can switch between branches, remotes, and tags from the branch view in the upper right corner.
Tap each line to display details, including the full text of the comment, information on each file, and a comparison of file contents.

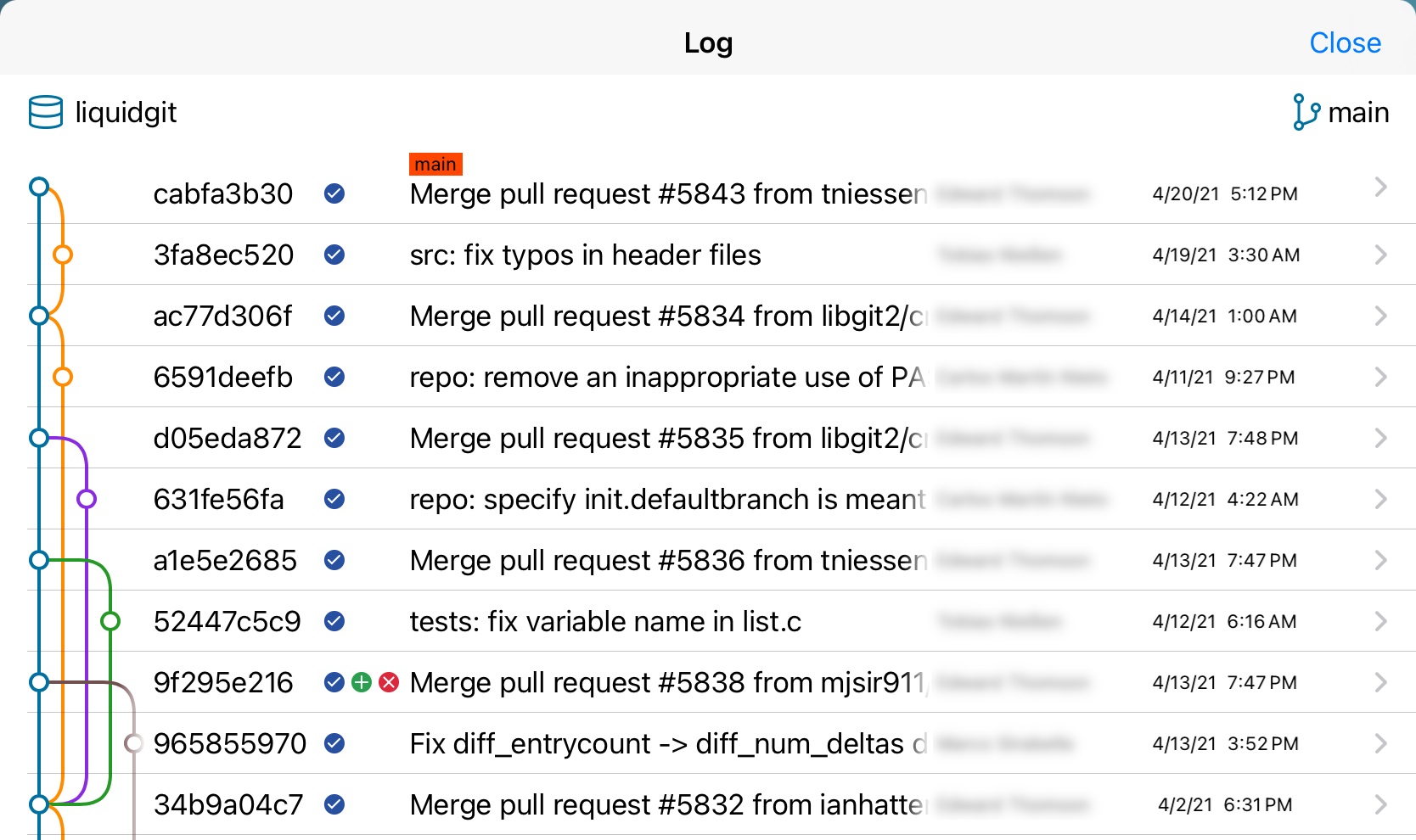

▼Log Screen
Log

Badge Meaning:ModifiedModified  AddedAdded  DeletedDeleted

▼Log Details Screen
Log Details

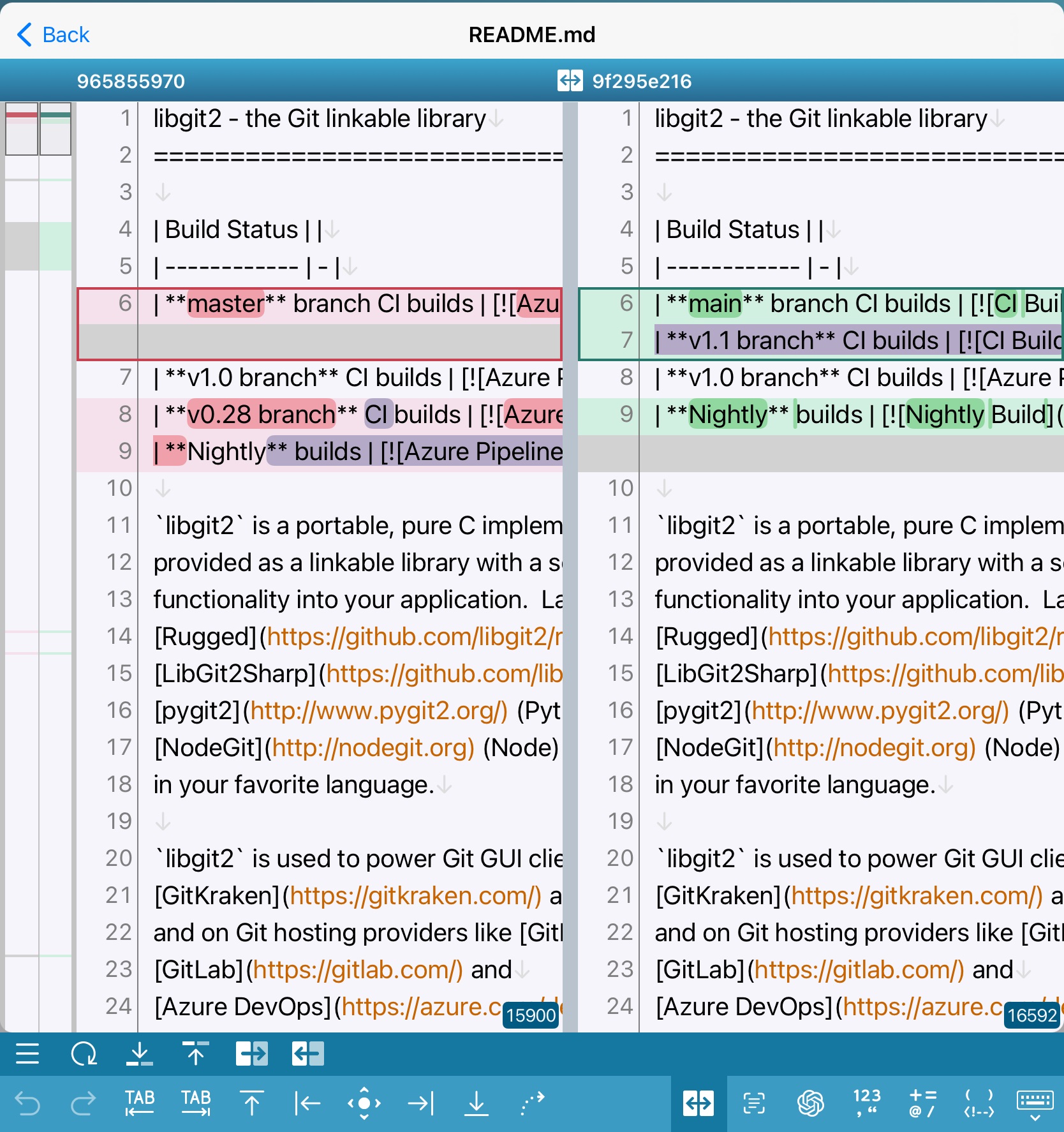

▼Compare from Log Details Screen
Compare from Log Details

■Branch

Branching work.

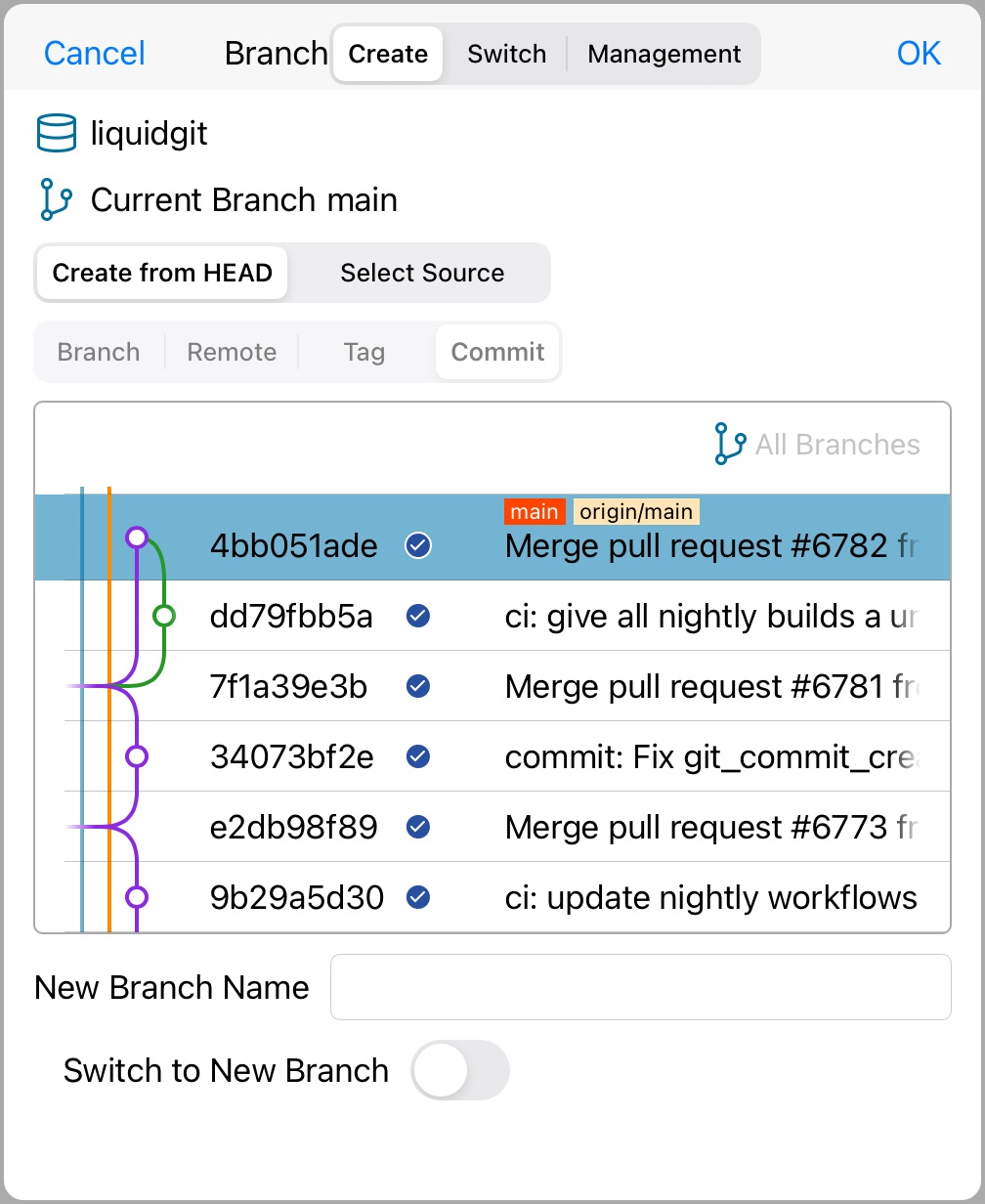

▼Create a New Branch from the Current Branch (=HEAD)
Create Branch 1

In Git Command git branch new-branch-name
Branch selection cannot be performed because it is created from HEAD.

If "Switch to New Branch" is checked, switchover is performed after creation.
git branch new-branch-name
git switch -c new-branch-name

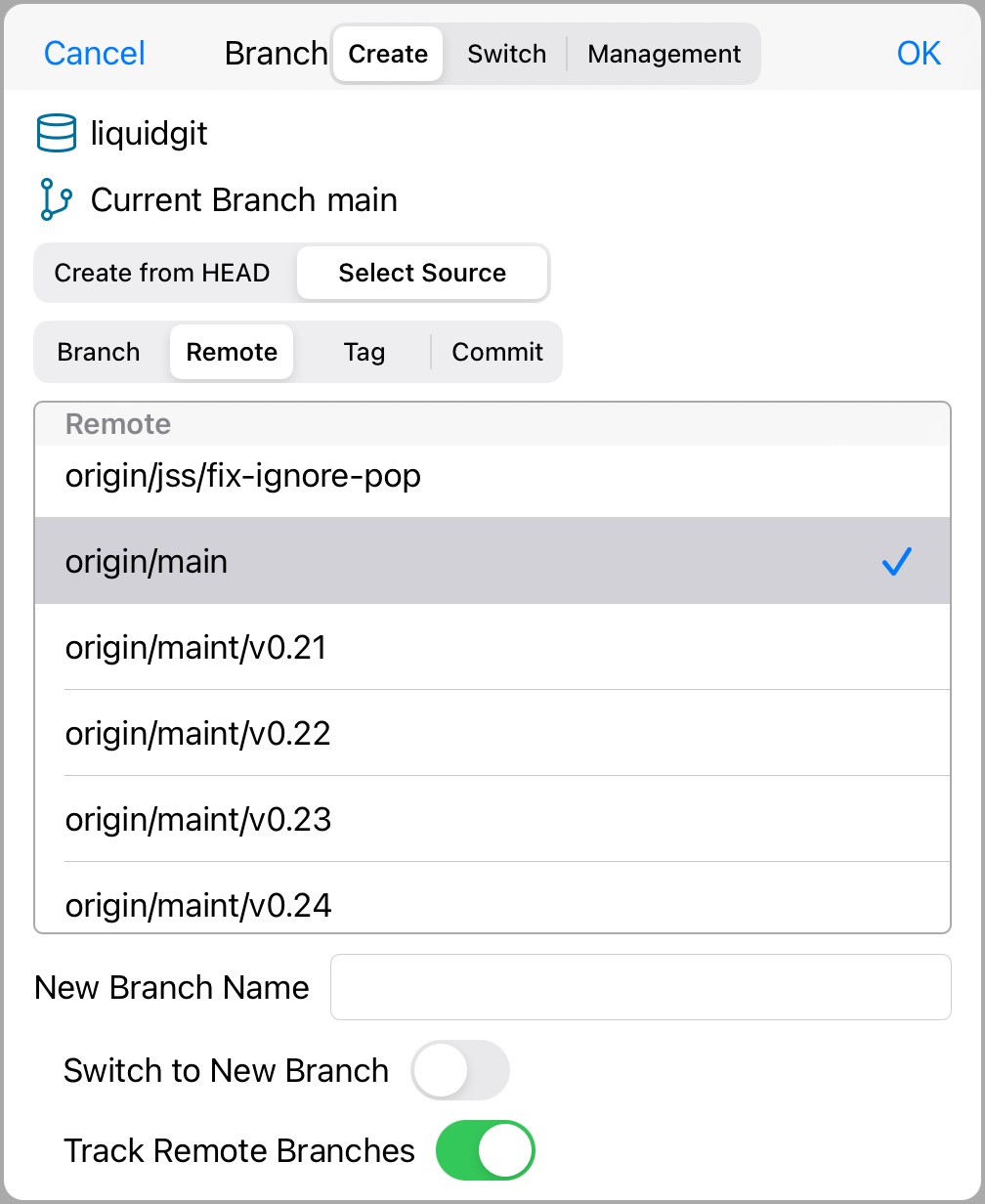

▼Create a New Branch from a Given Branch or Commit
Create Branch 2

In Git Command git branch new-branch-name selected-branch

*When creating a new branch from a remote branch, choose "Track remote branch" to make it an upstream branch.
git branch new-branch-name
git branch --set-upstream-to=selected-remote-branch new-branch-name

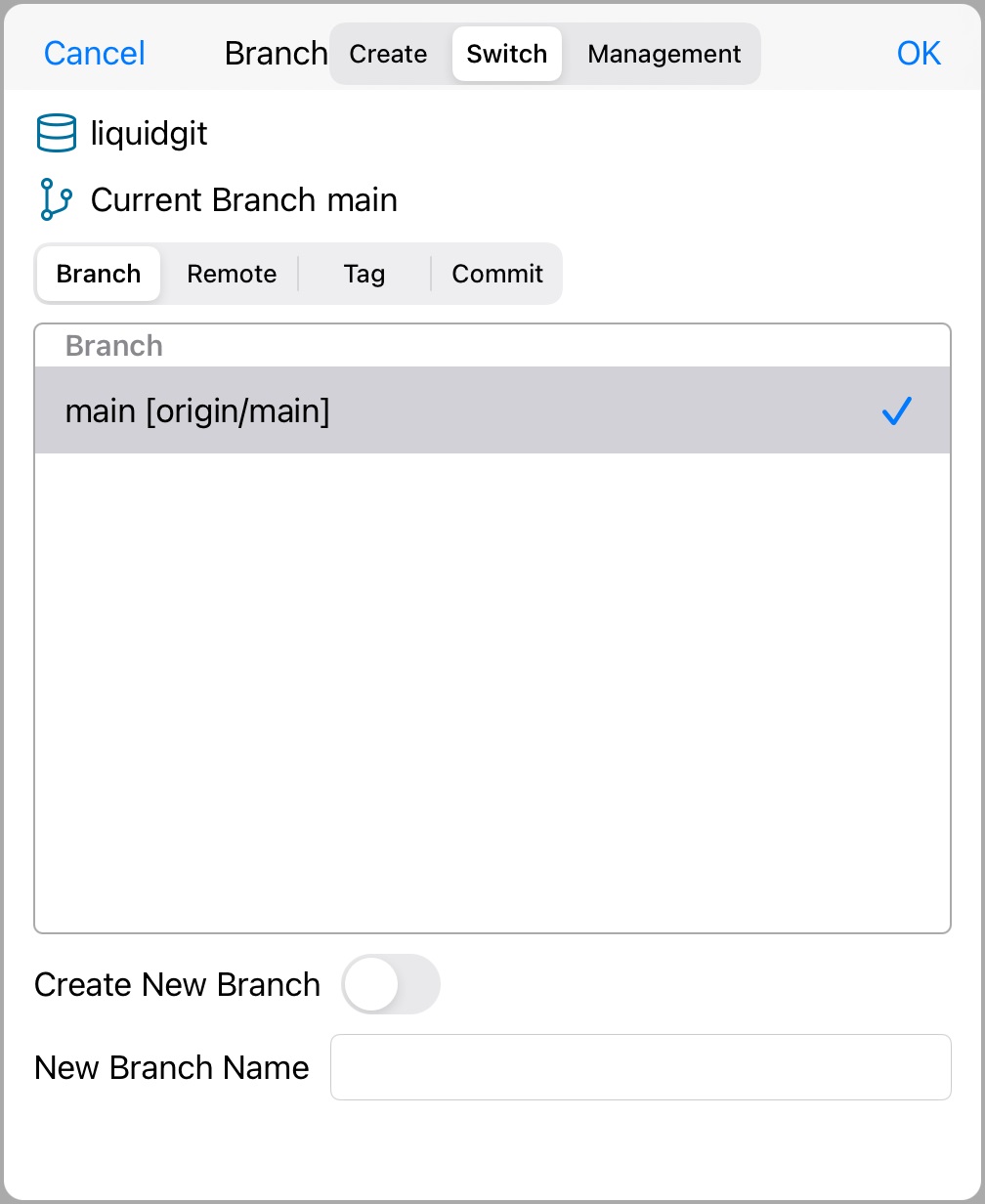

▼Switching Branches
Switching Branches 1

In Git Command git switch selected-branch

"Create Nnew Branch" is optional. If checked, the following behavior.
git switch -c new-branch selected-branch

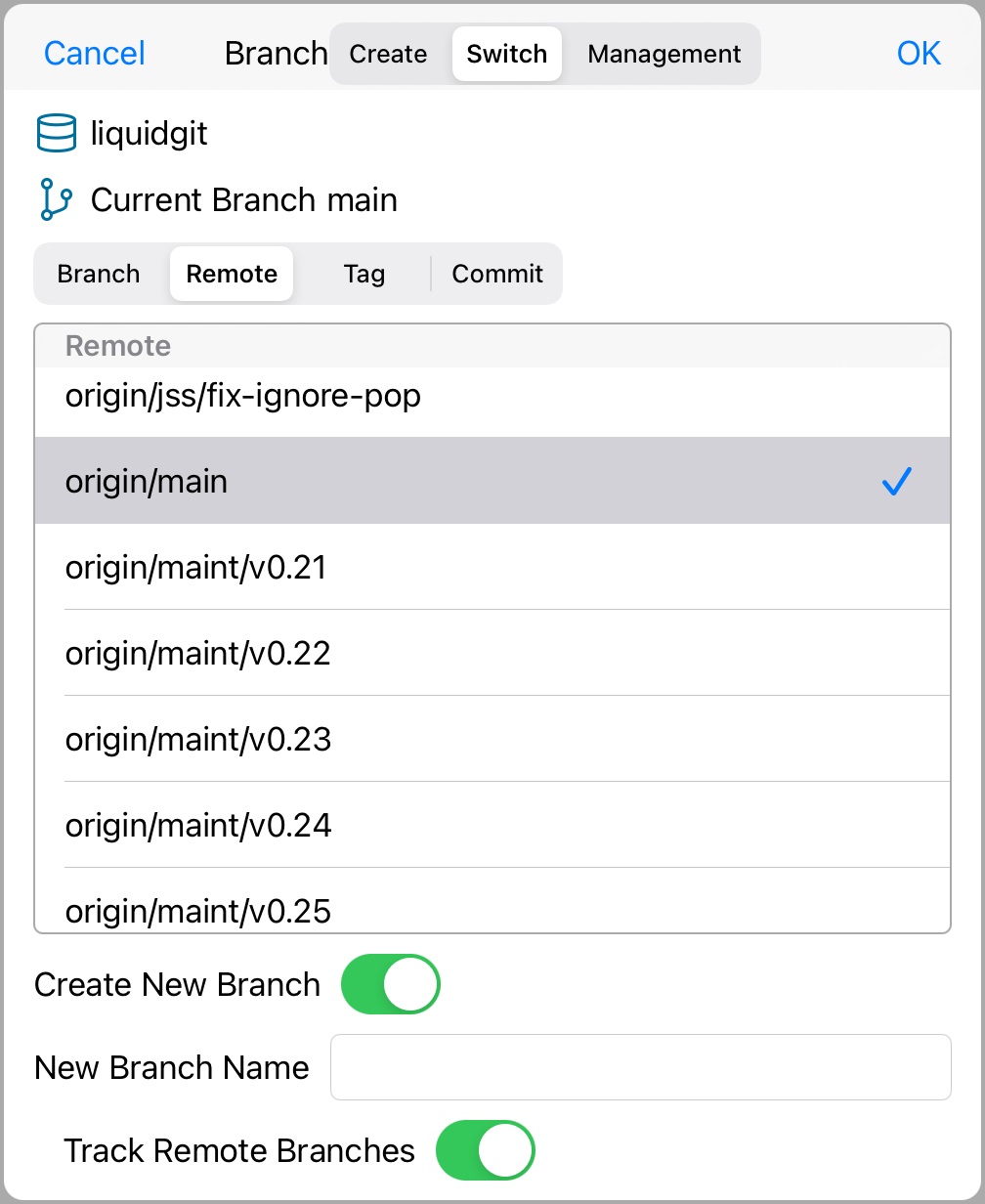

▼Switching Branches (remote branch)
Switching Branches 2

In Git Command Switching to a remote branch requires the creation of a new branch, which works as follows.
git switch -c new-branch-name selected-branch

Furthermore, if "Track Remote Branches" is selected, the following behavior occurs
git switch -c new-branch-name selected-branch
git branch --set-upstream-to=selected-remote-branch new-branch-name

▼Delete Branch
Delete Branch

In Git Command git branch -D selected-branch

■Merge

Integrate branch.

▼Merge Screen
Merge

In Git Command git merge souce-branch
Fast Forward
  Auto  (blank)  If fast-forwarding is not possible, a merge commit is created.
  Only  --ff-only  Error if fast-forward not possible.
  No  --no-ff  Always create merge commits.
Using Repository Settings  Inherit fast-forward settings from the repository, account settings, or.
    *See "Add/Delete Git"
Squash Commit  --squash
Suppress Commit  --no-commit

Merge destination is fixed to the current branch.

■Rebase

Consolidate branches by bringing history together.

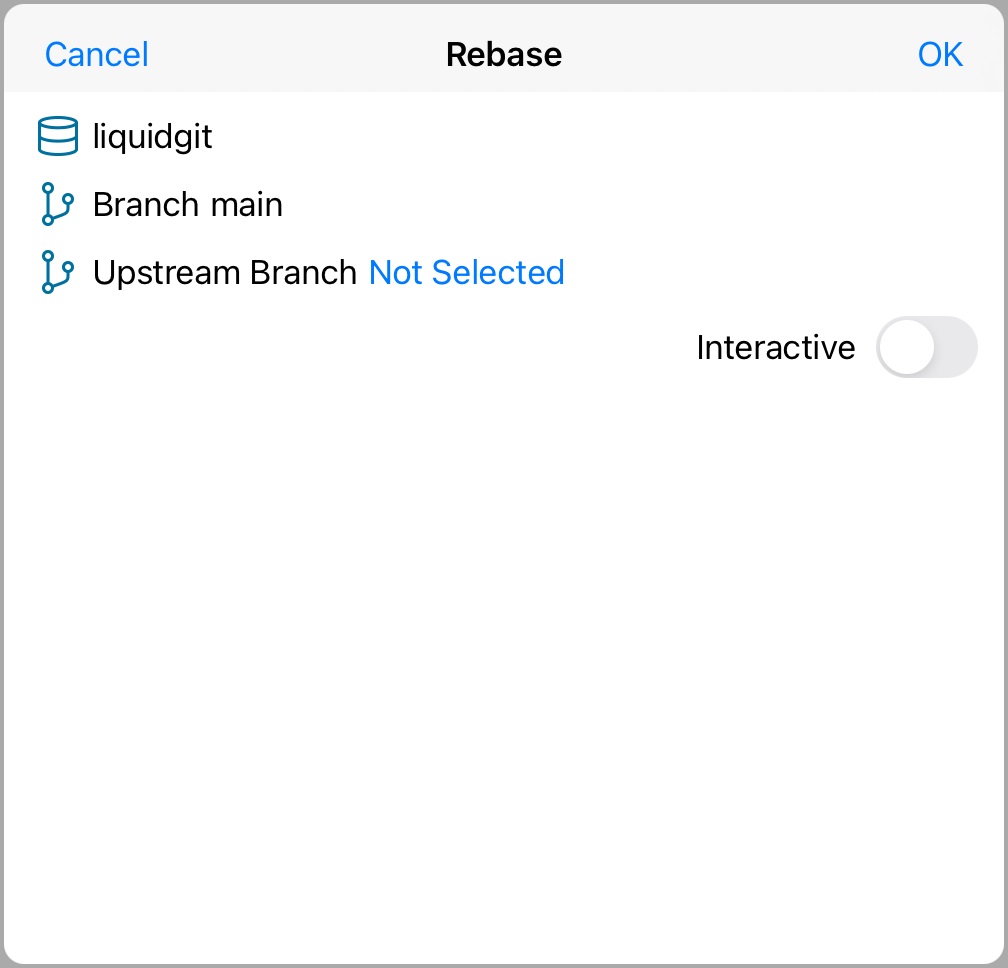

▼Rebase Screen
Rebase 1

In Git Command git rebase upstream-branch target-branch
  Target branch is fixed to the current branch.
  Upstream branch selected from list.

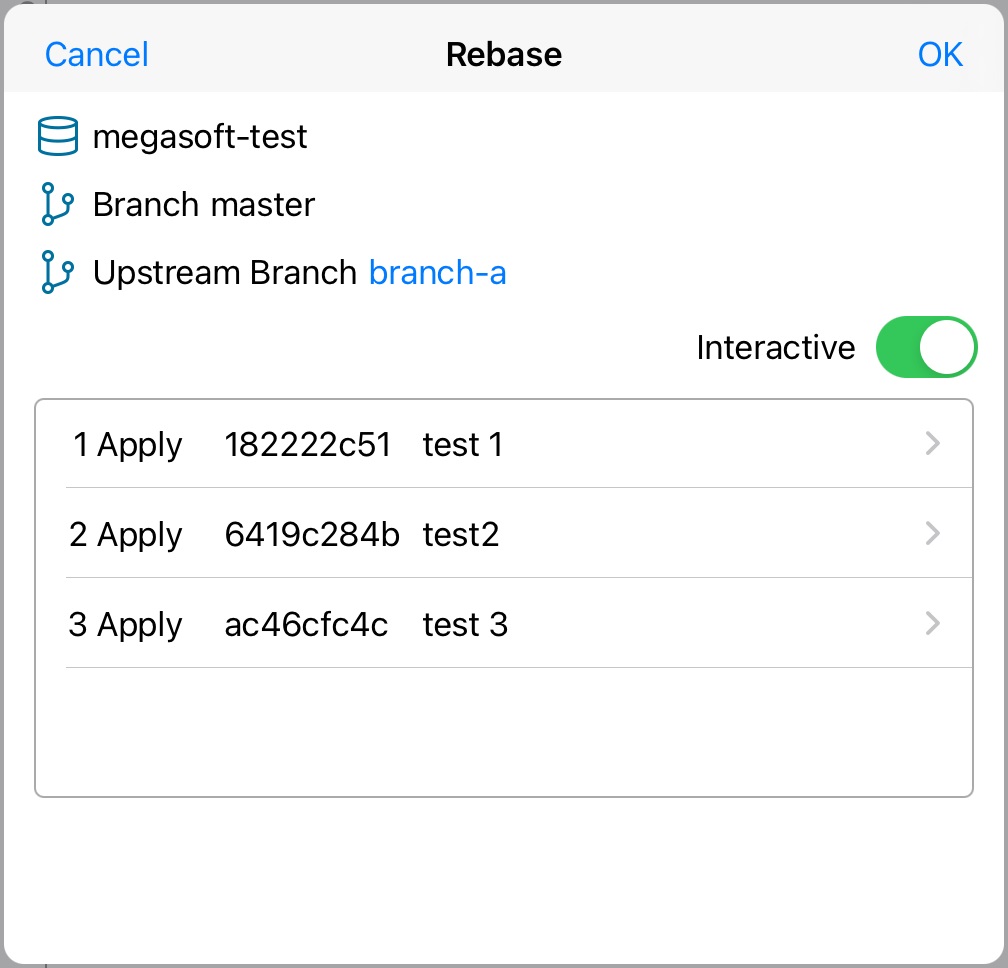

▼Rebase to Specify Processing for Each Commit
Rebase 2

In Git Command git rebase -i upstream-branch target-branch

Run rebase with the -i option in the git command to specify how to rebase each commit in the editor.
The file contents will be as follows
----------------------------------------
pick 8c9189f36 test1
pick be9635966 test2
pick f300e1655 test3

# Rebase 0dd1191..7982ac2 onto 0dd1191 (3 commands)
#
# Commands:
# p, pick = use commit
# r, reword = use commit, but edit the commit message
# e, edit = use commit, but stop for amending
# s, squash = use commit, but meld into previous commit
# f, fixup = like "squash", but discard this commit's log message
# x, exec = run command (the rest of the line) using shell
# b, break = stop here (continue rebase later with 'git rebase --continue')
# d, drop = remove commit
# l, label <label> = label current HEAD with a name
# t, reset <label> = reset HEAD to a label
# m, merge [-C | -c ] <label> [# ]
# . create a merge commit using the original merge commit's
# . message (or the oneline, if no original merge commit was
# . specified). Use -c to reword the commit message.
#
# These lines can be re-ordered; they are executed from top to bottom.
#
----------------------------------------

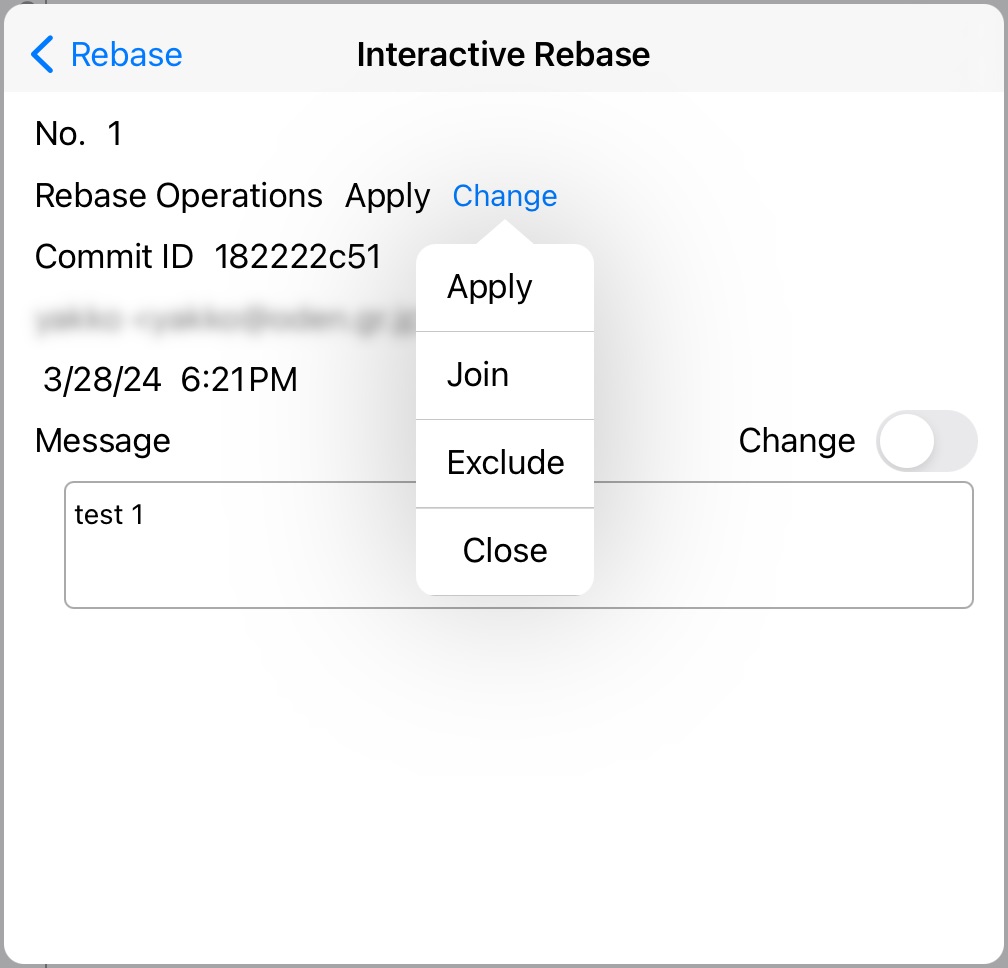

▼Rebase Specify the Commit Process
Rebase 3

In Git Command The following options are available
Apply→pick
Join→squash
Exclude→drop
Change message→reword
(Check the button and rewrite the message in the dialog)

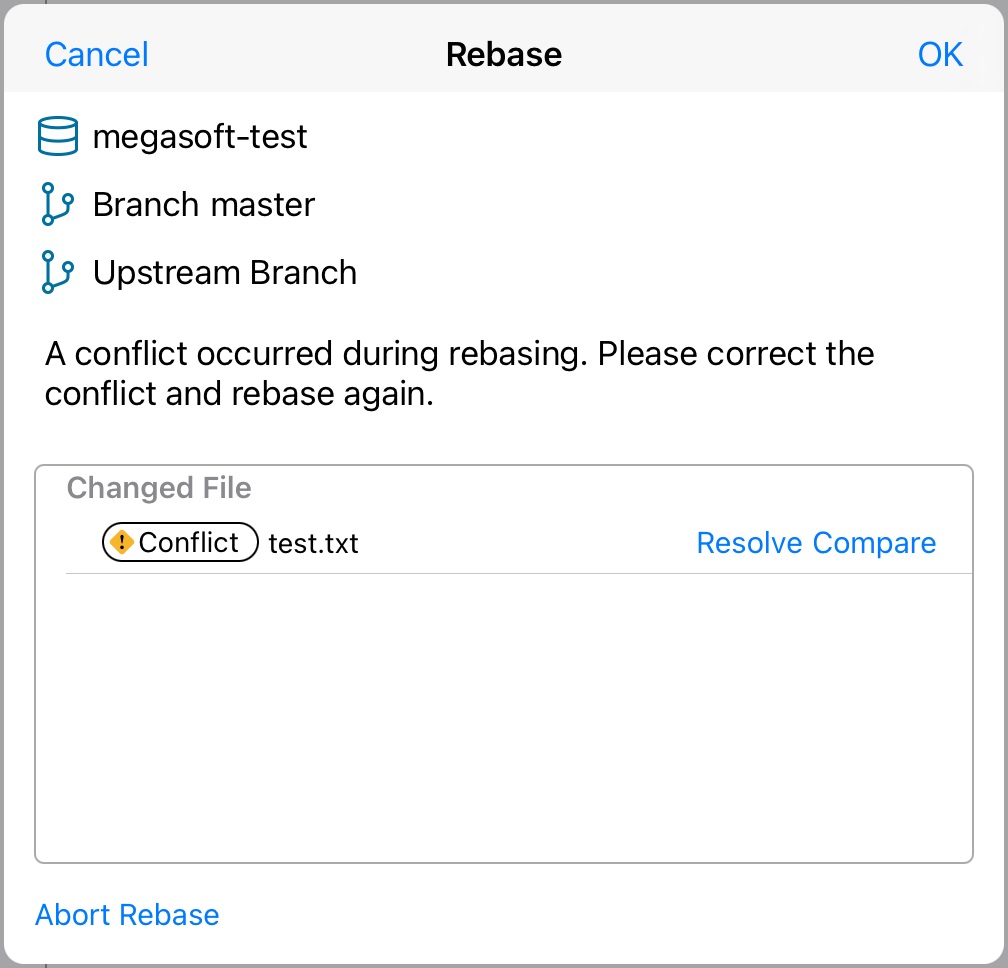

If a conflict occurs during rebasing, the rebasing dialog changes to conflict resolution. ▼Rebase Conflict Resolution Screen
Rebase 4

In Git Command OK button after editing conflicting files to continue rebasing.
→ rebase --continue

Abort rebasing with the "Abort Rebase" button.
→ rebase --abort

■Commit

Register a history of changes and additions to the repository.

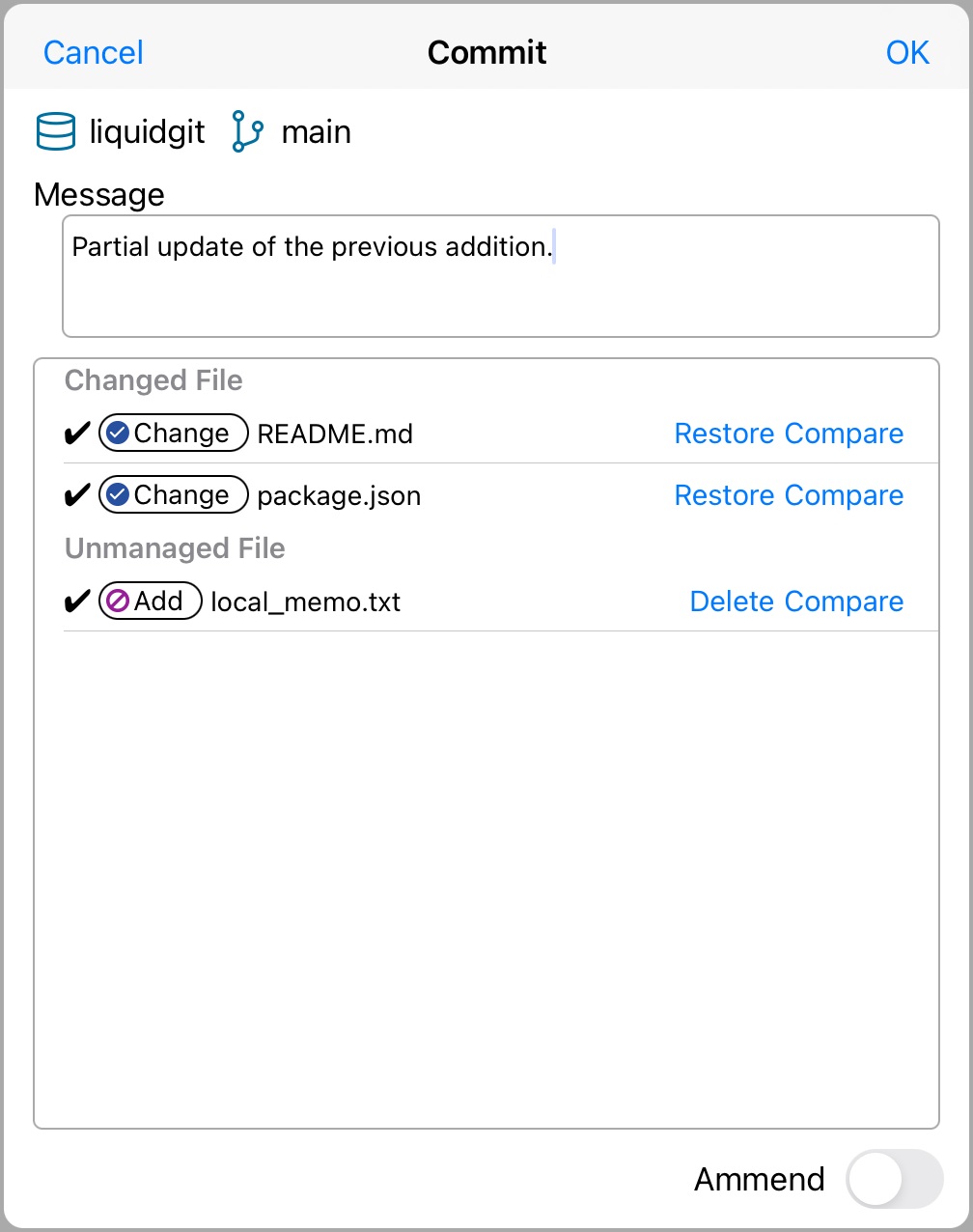

▼Commit Screen
Commit

In Git Command git commit -c 'message'

Files checked in the list are added to the stage and committed.
  git add selected-files
  Ammend --amend

■Discard Changes

Undo changes made to the specified file.
Overwrite with HEAD status.

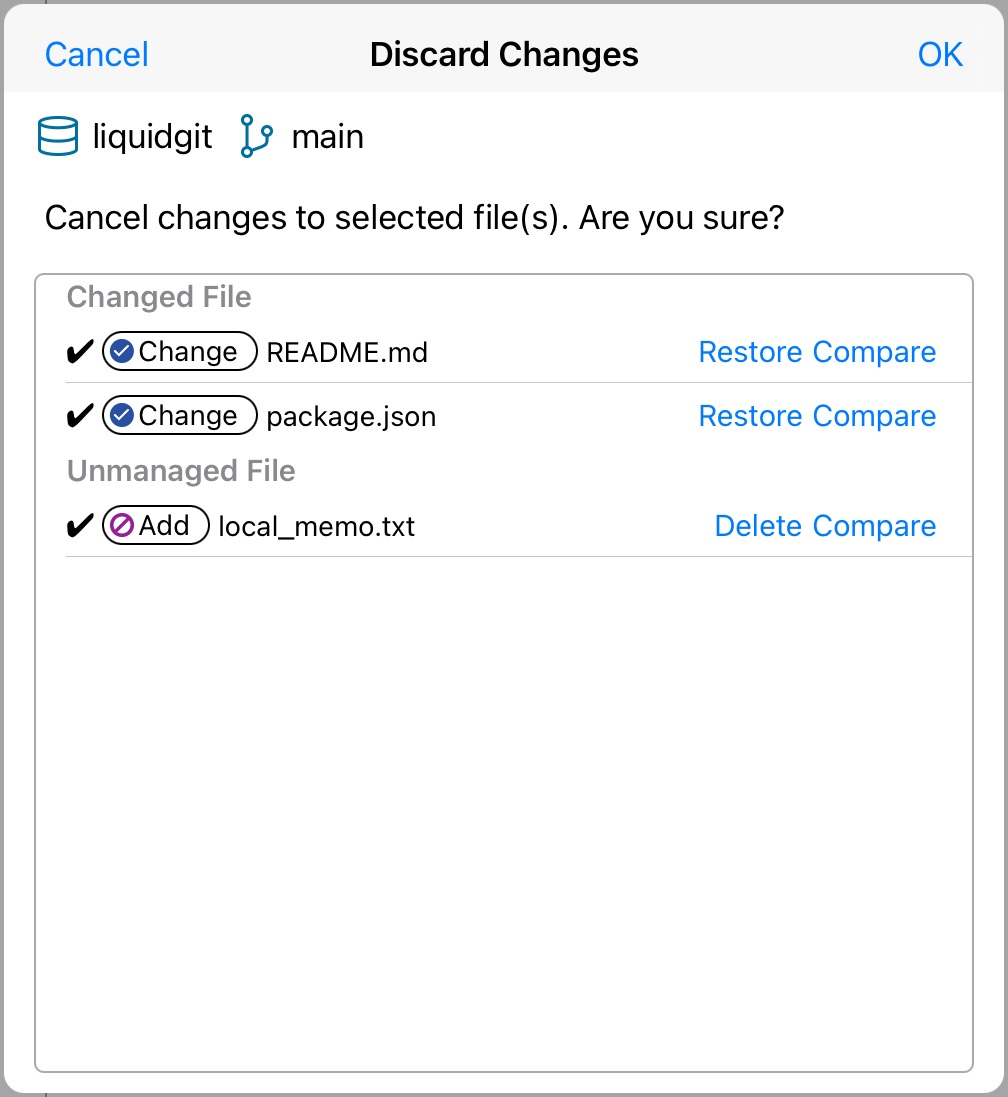

▼Discard Changes Screen
Discard Changes

In Git Command For each file checked.
git restore file-path

■Fetch/Pull

●Fetch
Get the latest history of the remote repository.

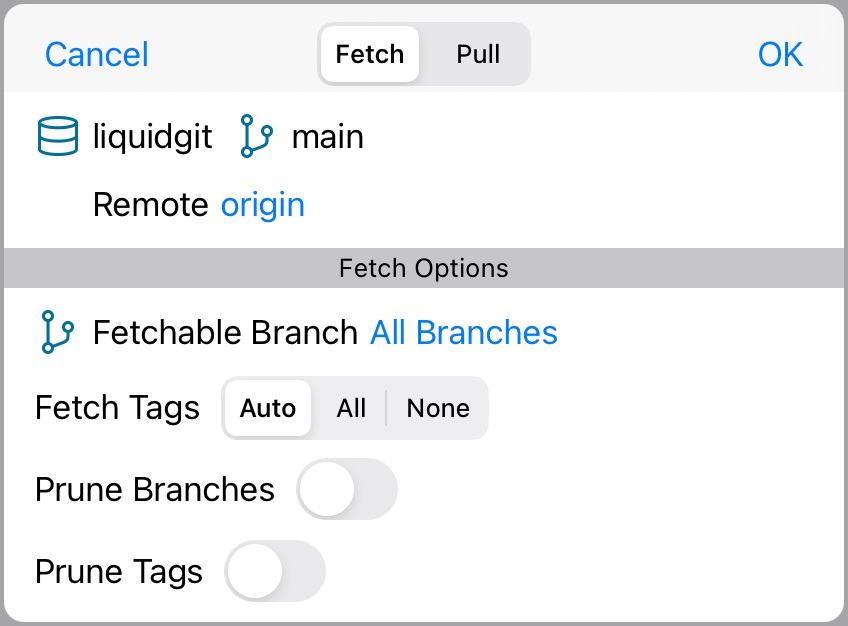

▼Fetch Screen
Fetch

In Git Command Fetchable Branch
Select "All Branches"
  git fetch remote
Select specific branch
  git fetch remote fetchable-branch

Fetch Tags *
  Auto  blank
  All  --tags
  None  --no-tags
Prune Branches(Delete branches that are not remote)  --prune
Prune Tags(Remove tags that are not in the remote)  --prune-tags

*About getting tags
In the fetch dialog, choose from the following methods for retrieving tags.
  Auto  Only reachable tags are retrieved. If already exists locally, overwrite with remote content.
  All  Retrieve all tags in the remote. If already exists locally, overwrite with remote content
  None  Not acquired (local tags are not changed at all).
Reachable Tags
  That tag points to a locally acquired commit = reachable.

●Pull
Retrieve and merge the latest history of remote repositories.

▼Pull Screen
Pull

In Git Command Merge
  git pull remote target-branch
Rebase
  git pull -rebase remote target-branch

Fast Forward  *Same behavior as the options in the merge dialog
  Auto  (blank)
  Only  --ff-only
  No  --no-ff
Using Repository Settings  Inherit fast-forward settings from the repository, account settings, or.
    *See "Add/Delete Git"
Squash Commit  --squash
Suppress Commit  --no-commit

■Push

Upload a history of changes and additions to a remote repository.

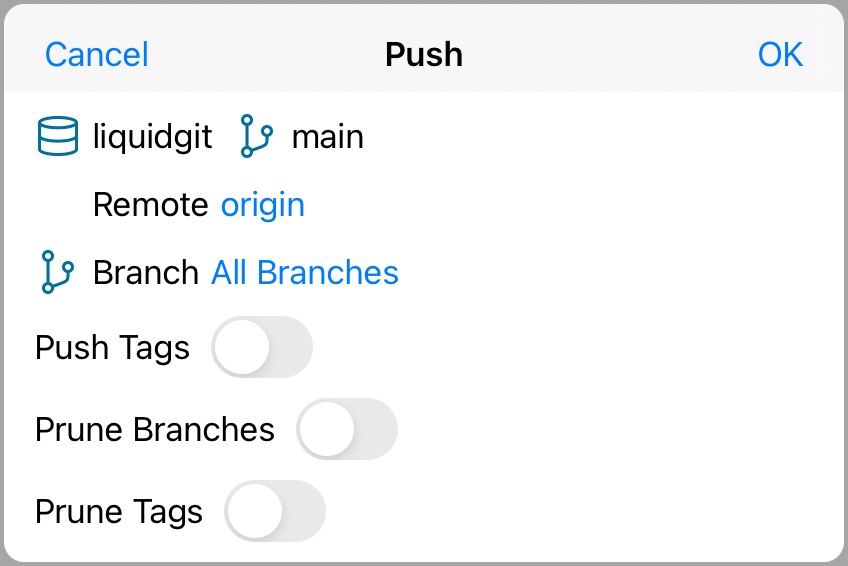

▼Push Screen
Push

In Git Command Branch
Select "All Branches"
  git push --all remote
Select specific branch
  git push remote selected-branch

Push Tags  --tags  Push with specified branches and tags.
Prune Branches(Delete branches that are not remote)  --prune
Prune Tags(Remove tags that are not in the remote)  --prune-tags

■Repository Settings/Delete

You can specify various types of repositories.
Displays remote fetch URL(s).
Delete allows you to delete a repository.
*See "Create Empty Repository" for commands to set merge/pull defaults.

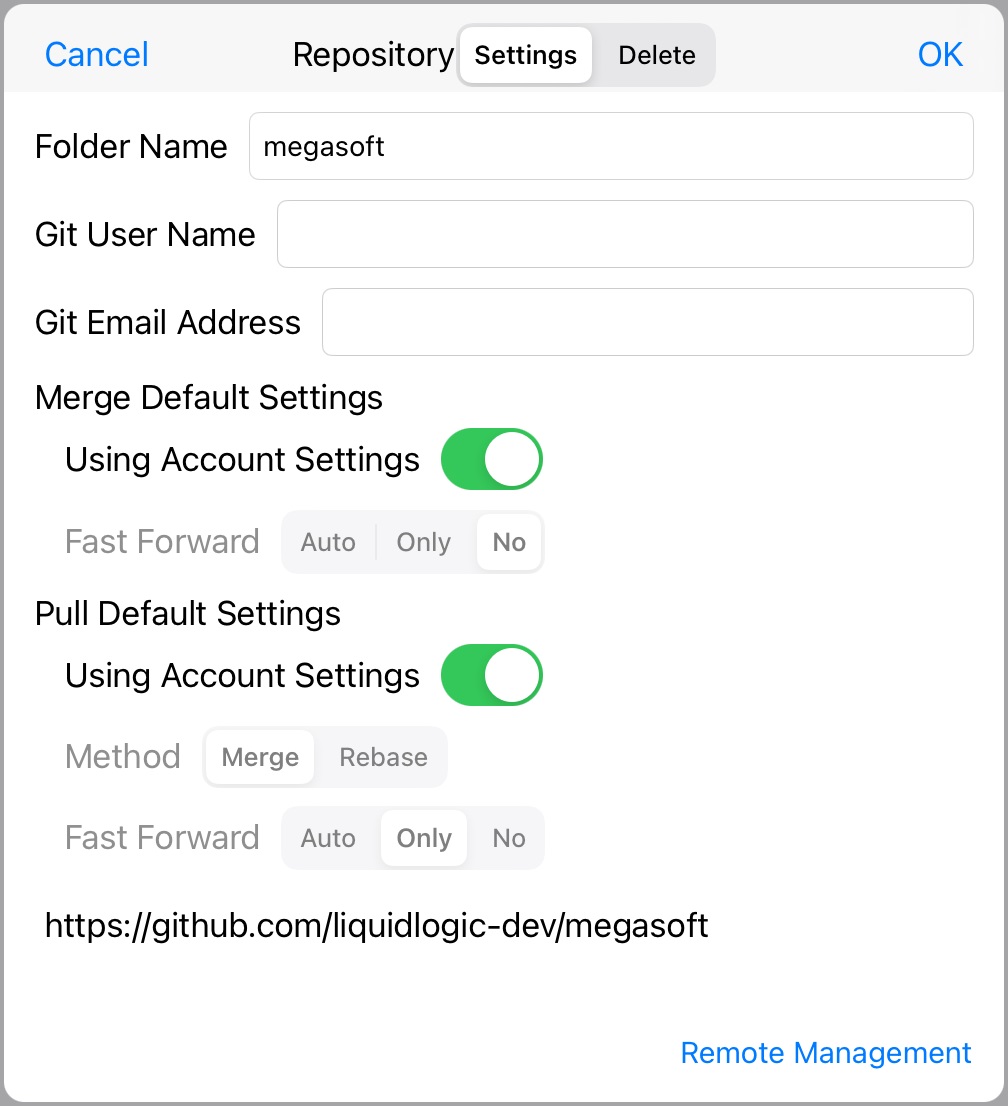

▼Repository Settings/Delete
Repository Settings/Delete

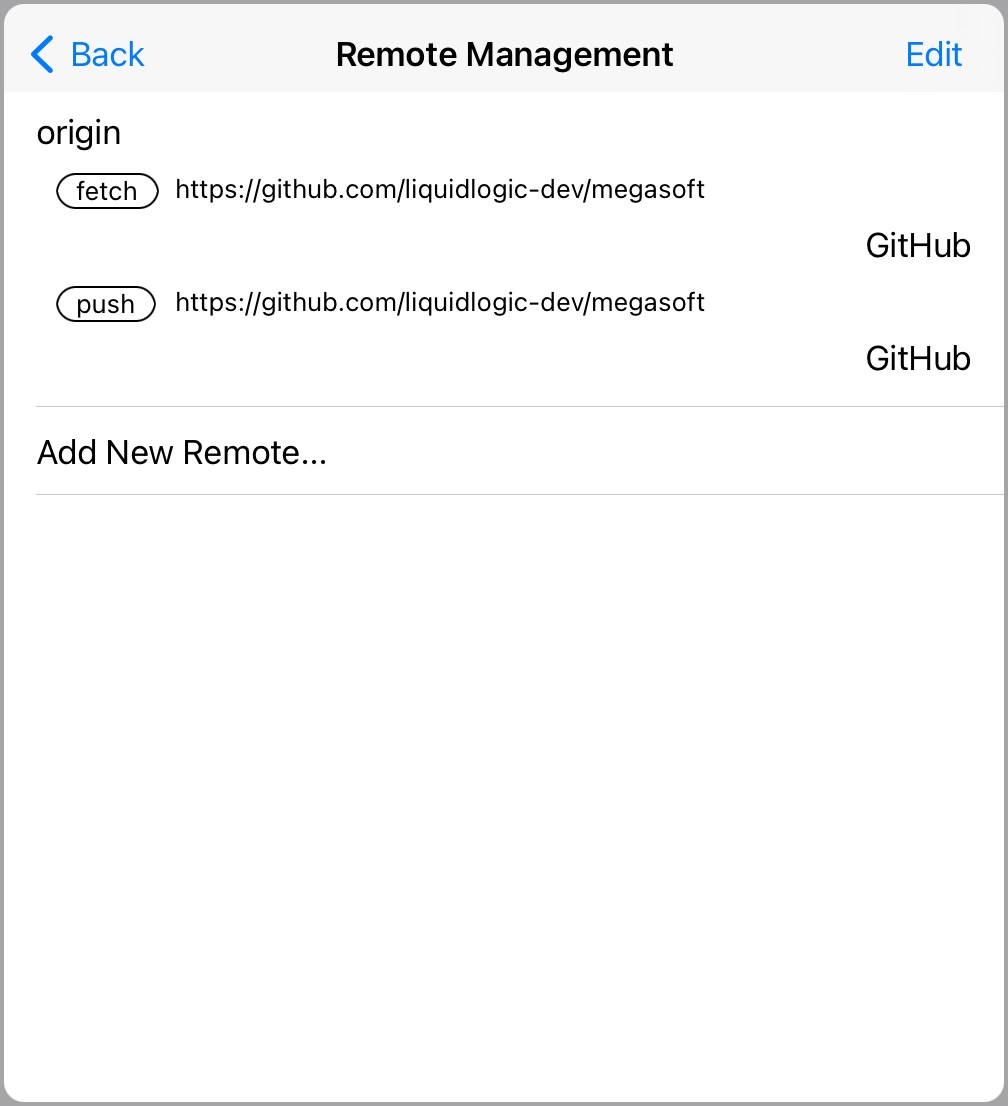

▼Remote Management
You can list and add registered remotes.
While a remote can be configured with a single fetch source and multiple push destinations, LiquidLogic allows only a single URL to be specified.
Remote Management

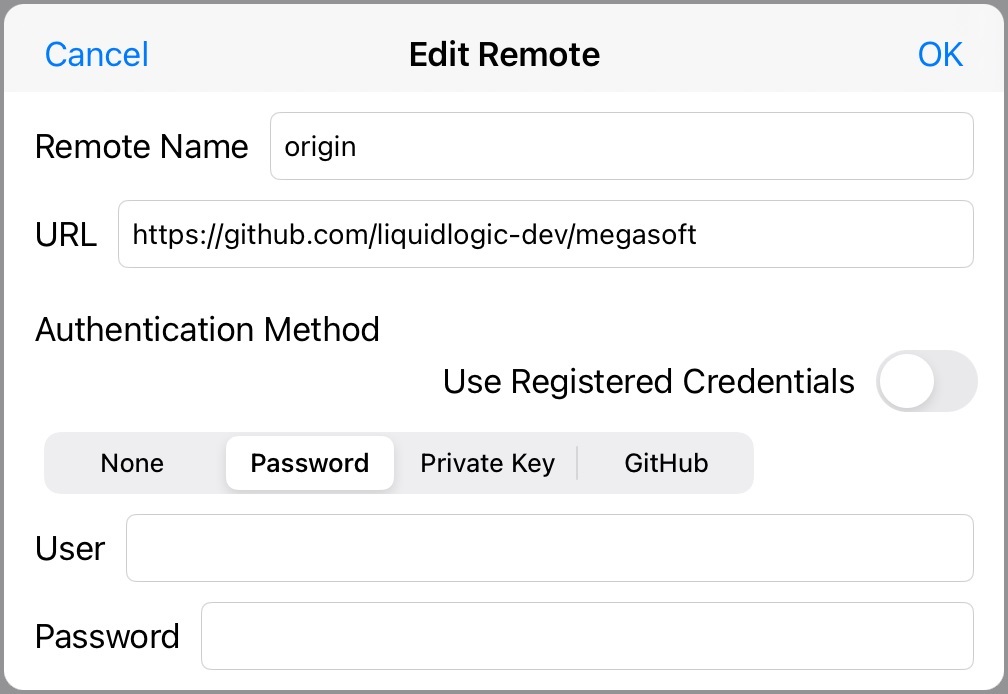

▼Edit Remote
URL is common for fetch/pull.
Edit Remote
